Vacuum membrane press machine

FOB Reference Price:Get Latest Price
US $4,000-7,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
60 Set/Sets per Month
Port:
qingdao
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hot Glue Wrapping
Feeding Speed:
2~3 min/1 door
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XBD
Model Number:
LB-TM2480-B
Voltage:
380V 50HZ
Power(W):
20KW
Dimension(L*W*H):
5800*1850*1350
Weight:
2t
Certification:
ISO
Warranty:
1 year
After-sales Service Provided:
Overseas service center available
type:
woodworking machine
application:
film-coat
origin:
China Shandong
Product name:
vaccum press machine
Color:
Requirements
Packaging & Delivery
Packaging Details
standard export packing or as customers' needs
Delivery Time
7 Days after receiving deposit

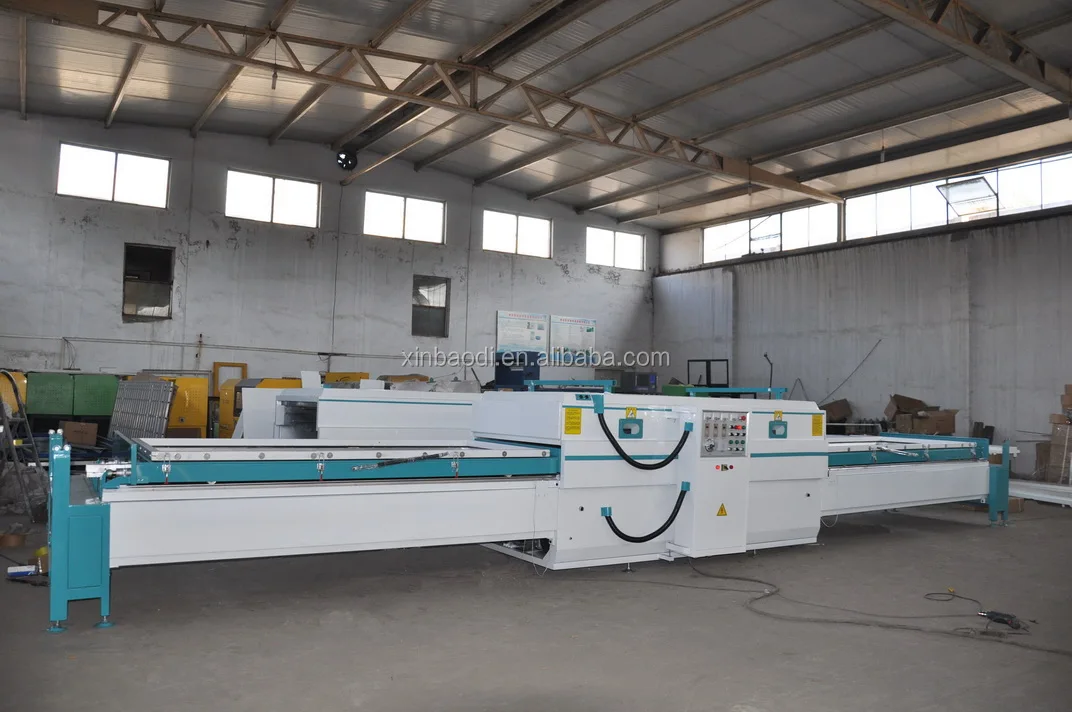

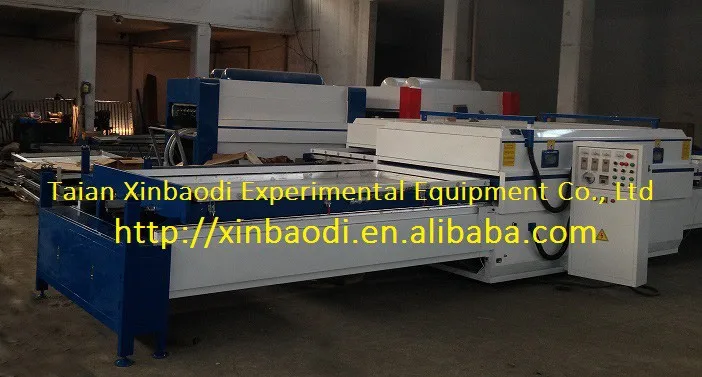

Vacuum press machine

FEATURES:

LB-TM2480-B1 (SINGLE WORKPLACE )has two kinds of functions, one by manual and the other is automatic.The operation is easy and efficient.It is suitable for covering PVC film on the surfaces of all kinds of plate type furniture,sonnd boxes and ornamental materials ETC.Using the special shape edge surface.It has advantage of anti-fire,waterproof,acid-proof,alkall-proof,especially for indoors decoration,no pollution,no  peculiar smell,quick installment and beatiful apperarance.It is the ideal equipment in interior design.

Specifications

1 Power: 27kw
2 Overall Dimension:Overall Dimension
3 pressure: 0.9Mpa
4 Overseas service center available
5 CE

LB-TM2480 -B1 (SINGLE WORKPLACE )vacuum woodworing film-coat machine



Brief Introduction of  LB-TM2480 (SINGLE WORKPLACE )vacuum woodworking film-coat machine



LB-TM2480 (SINGLE WORKPLACE )vacuum woodworking film-coat machine can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer.





Technical Specification Of  LB-TM2480 vacuum woodworking film-coat machine

 Features of LB-TM2480 (SINGLE WORKPLACE )vacuum woodworking film-coat machine


1. The electronic part of vacuum machine just for decoration is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.



2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.
3. This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.
4. This machine uses Germany technology vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also opt for German-made vacuum pump, which is strong and tough).
5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.

Exterior size 5800(one plate)/8800(double plate)×1500×1400mm
Working plate size 2550×1150/1300mm(inner size)
1150mm for PVC door, width of PVC film more than1260mm
1300mm for cabinet, width of PVC film more than 1400mm
Maximum height of the work piece 50mm
Rating working pressure Negative Pressure≥-0.095Mpa
General Power 15kW(the power may be different for different devices)
Actual power consumption About 5kw
Weight About 2/2.5T
Top temperature 180°C
