XBD-2480D PVC Vacuum Membrane Press Machine In Furniture Machine

FOB Reference Price:Get Latest Price
US $4,000-8,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hot Glue Wrapping
Feeding Speed:
2~3 min/1 door
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XBD
Model Number:
LB-TM2480D
Voltage:
380V 50HZ / 220V 60HZ
Power(W):
3kw
Dimension(L*W*H):
10800*2100*1600
Weight:
2t
Certification:
CE/ISO9001
color:
white
function:
Various materials coated
control:
computer /manual
be customized:
yes
workplace:
one/two
Covered Material:
PVC Film
Product name:
XBD-2480D PVC Vacuum Membrane Press Machine In Furniture Machine
Glue Type:
Hot Melt Glue
Packing:
Plywood case
MOQ:
1 set
After-sales Service Provided:
Overseas third-party support available
Warranty:
1year
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export packing or as customers' needs
Port
QINGDAO
Lead Time :
7Days after receiving deposit

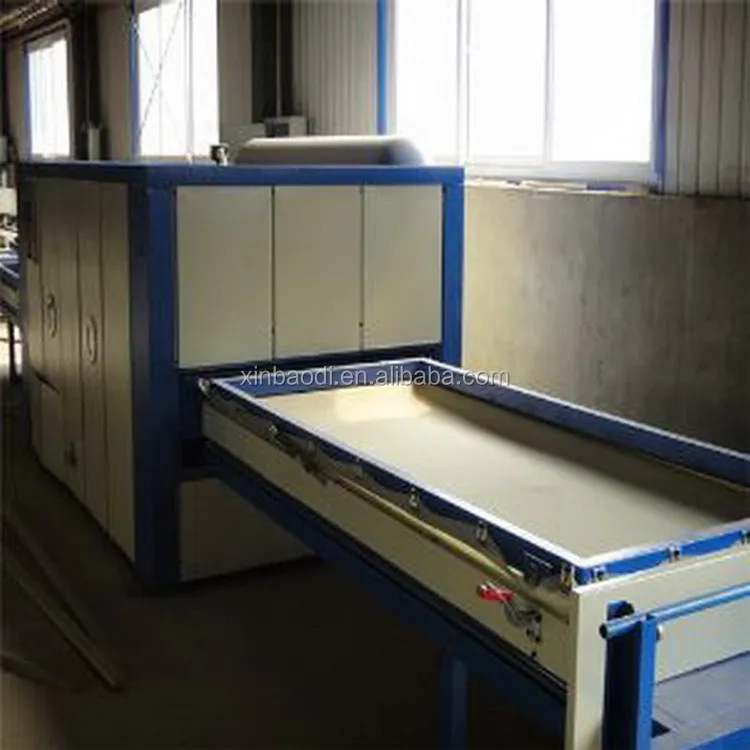

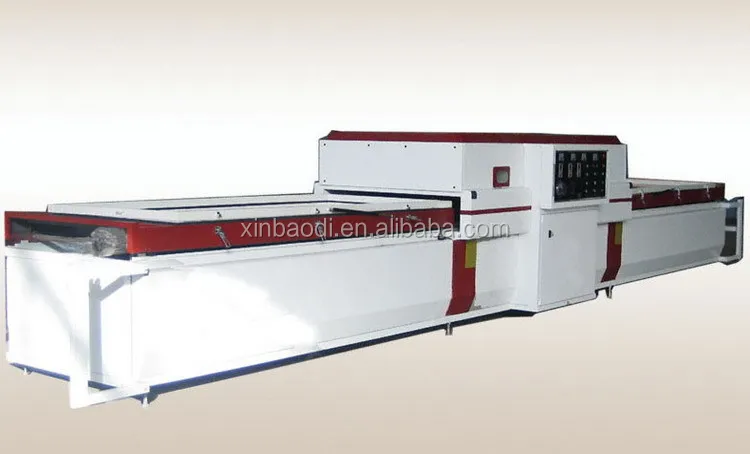

XBD-2480D PVC Vacuum Membrane Press Machine In Furniture Machine

Specifications

1 Power: 27kw
2 Overall Dimension:Overall Dimension
3 pressure: 0.9Mpa
4 Overseas service center available
5 CE

LB-TM2480 vacuum machine just for decoration



Brief Introduction of LB- TM2480 vacuum machine just for decoration



TM2480 vacuum machine just for decoration can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer.



Technical Specification Of LB- TM2480 vacuum machine just for decoration







Overall Dimension



10800×2100×1600mm

Platen Size



2500×1300×60mm

Rated working pressure



Negative pressure ≥-0.095Mpa

Power

27kw

Heating

upper and lower heating

Actual Power Consumable



8kw

Weight



2T

Voltage

380V 50HZ / 220V 60HZ

Packing Size

3500×2100×2400mm











Features of  LB-TM 2480 vacuum machine just for decoration







1. The electronic part of vacuum machine just for decoration is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.



2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.
3. This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.
4. This machine uses Germany technology vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also opt for German-made vacuum pump, which is strong and tough).
5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.



Exterior size 5800(one plate)/8800(double plate)×1500×1400mm
Working plate size 2550×1150/1300mm(inner size)
1150mm for PVC door, width of PVC film more than1260mm
1300mm for cabinet, width of PVC film more than 1400mm
Maximum height of the work piece 50mm
Rating working pressure Negative Pressure≥-0.095Mpa
General Power 15kW(the power may be different for different devices)
Actual power consumption About 5kw
Weight About 2/2.5T
Top temperature 180°C



After Sales Service:



1).One year warranty for machine, free maintenance service within this period.



2).7 days*24 hours online answer via skype, email.



3).Free training



4).Install ,Testing ,Training can be in your factory /workshop
