Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: China (Mainland)
  • Model Number: SG-1325
  • Voltage: 380V 50Hz
  • Power(W): 500KW
  • Dimension(L*W*H): 1450mmx2940mm
  • Weight: 2190KG
  • Certification: CE/ISO9001
  • Warranty: 1 year

Packaging & Delivery

Packaging Details Wooden cases
Delivery Time 7-15 days after payment

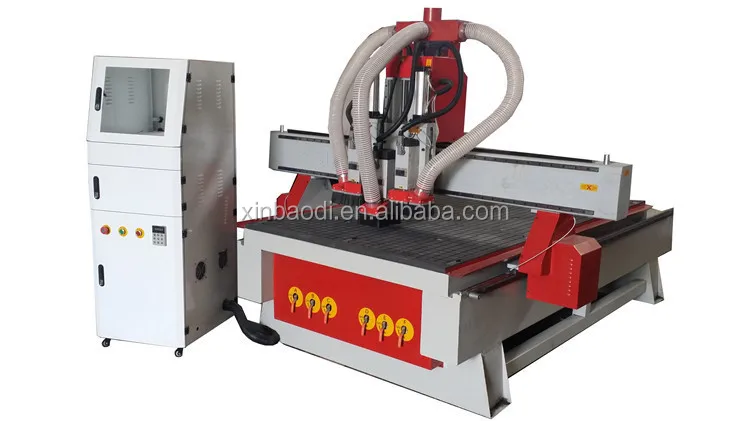

Three processes woodworking engraving machine suitable for :

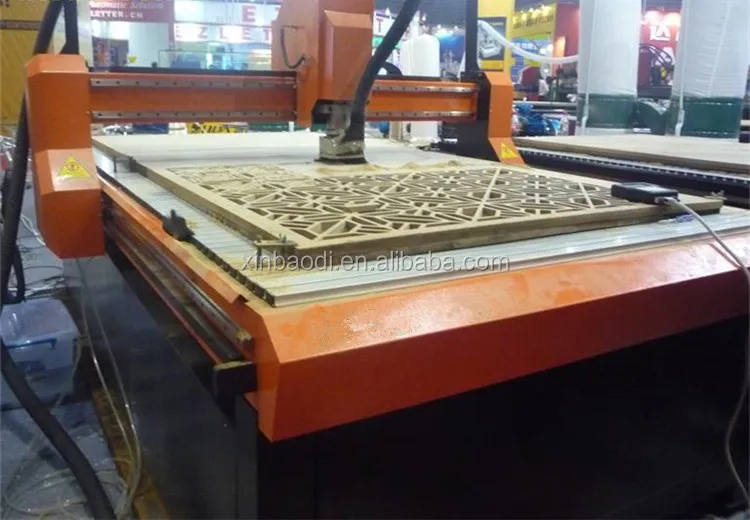

     billboard business: characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cutting, blister light boxes, mold production.Woodworking industry: 3 d ornamental engraving technology, wave board processing, wooden door production, carving, density board, board type furniture, solid wood furniture, solid wood carved art murals, wenqi door carvings of various kinds of people thousands of plank material production.



Number

Description

Parameter

1

X,Y,Z Working Area

1300mmx2500mmx200mm

2

Table Size

1450mmx2940mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

Vacuum and T-slot Combined (Option: T-slot Table)

6

Frame

Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

3.0Kw (Without spindle)

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

4.5 KW*3

13

Spindle Speed

0-18000RPM

14

Drive Motors

Servo motor System

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

Ncstudio System (options: DSP/Mach3 PC Software)

18

Computer Interface

USB

19

Flash Memory

128M(U Disk)

20

Collet

ER32

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3 Software (Option: Artcam software)

23

Running Environment Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

3750mmX2250mmX2100mm

26

N.W.

1750KG

27

G.W.

2190KG

28

Optional Parts

Columbo Air Cooling Spindle

Syntec Control System

Dust Collector

Vacuum Pump

Rotary System

Mist-cooling System

Delta / Panasonic Servo Motors
