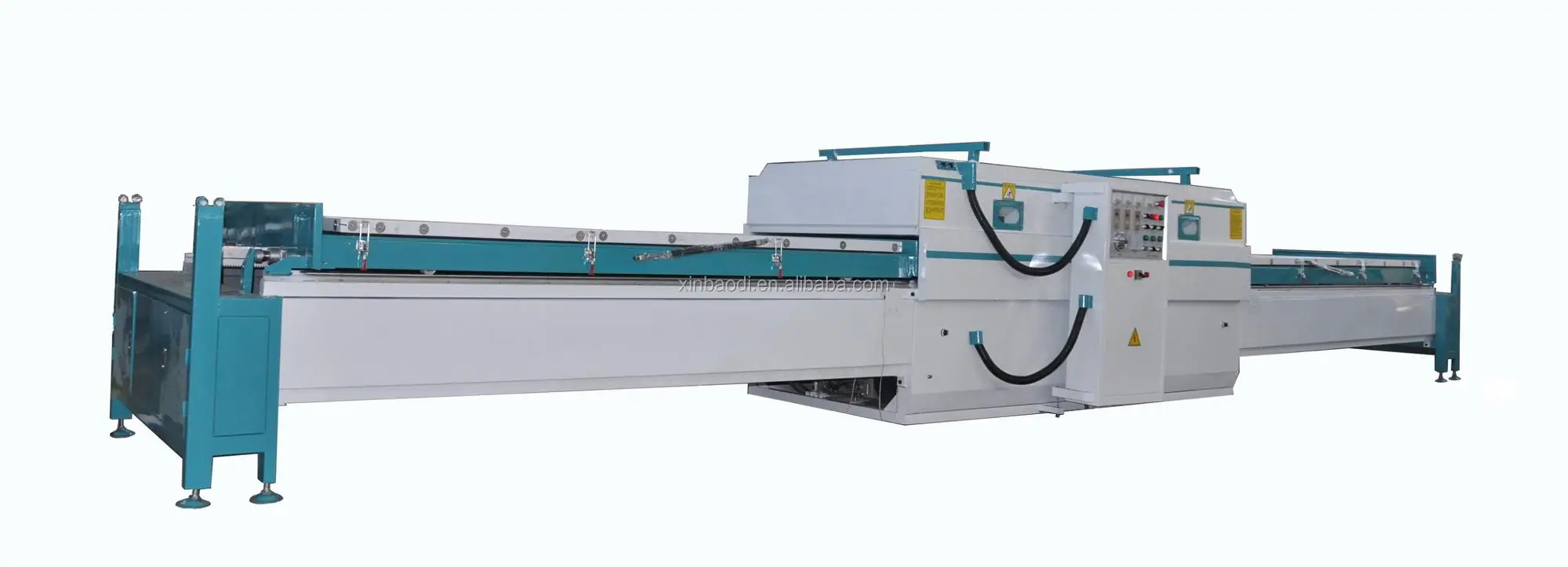

Full automatic double workplace door laminating machine/vacuum hot press machine/wood door press machine XBD-2480B-2

FOB Reference Price:Get Latest Price
US $4,000-7,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hot Press
Application:
woodworking
Pressure:
0.1Mpa
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XBD
Model Number:
XBD-2480B-2
Voltage:
380V
Power(W):
20
Dimension(L*W*H):
8950X1850X1350
Weight:
1200KGS
Certification:
ISO
Product name:
Membrane Vacuum Press Machine
Key words:
Vacuum Membrane Hot Press Machine
Color:
White
Covered material:
PVC film
Glue type:
Hot melt glue
MOQ:
1 set
Package:
Plywood case
Payment:
T/T
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 year
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box
Port
Qingdao
Lead Time :
within 15 days after confimation of order

 vacuum membrane press machine



Features:



The electrical system is controlled automatically, can be converted to manually control, easy to operate.



The working table has been treated specially, heat-resistent, anti-corrosion.



Introducing state-of-the-art vaccum technique, double engergy-storage tank, double air flu, of high vaccum.

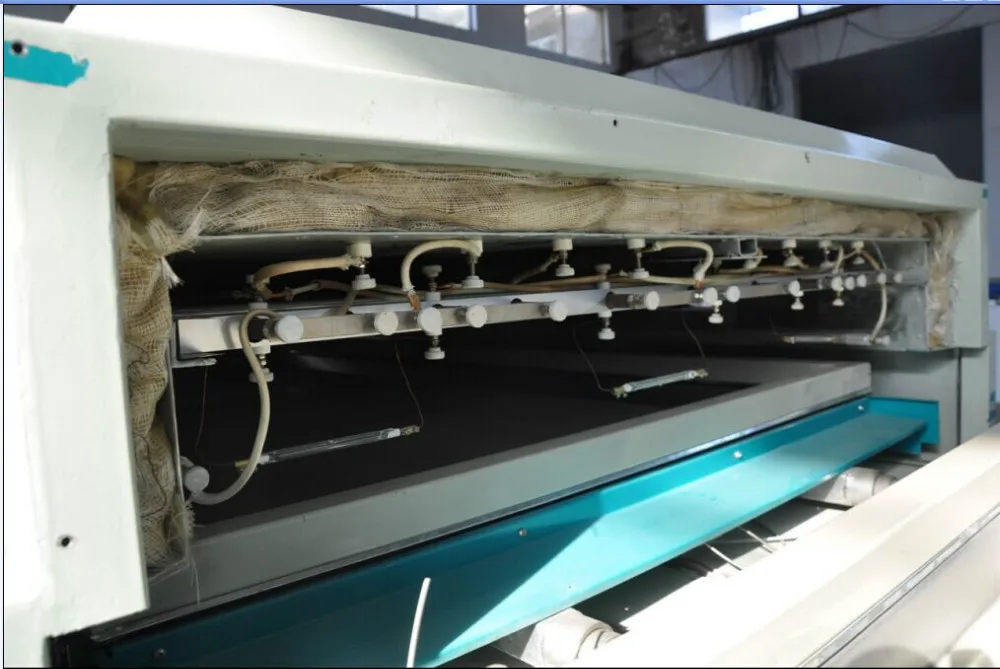

Implying far-infrared radiation heating system, with additional assistant heating system, heating uniformly, high effiency and engery saving.



Multi-use in one machine, high compatibility.



Used to cover PVC film covered to plate furniture, cabinet, sound box, doors etc,





Parameters:

Item

Unit

Parameter

Overall Size

mm

8950X1850X1350

Worktable Size

mm

2550X1150(1300)X50

Total Power

KW

20

Gross Weight

T

2.6

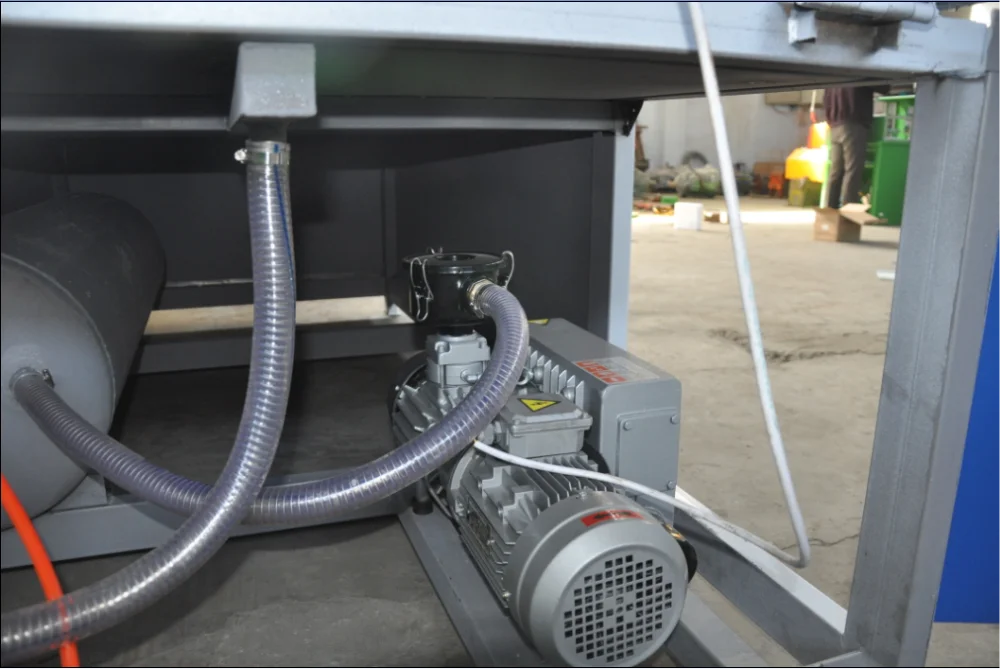

Equipted with good qulity vaccum pump:
