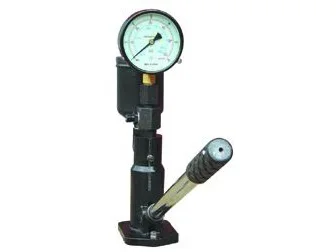

It can test and calibrate the nozzle injection pressure, spray quality, fuel testing angle and leakage of the needle valve.
It can also test light crude fuel injection valves with connected to a special ordered pressure gauge.
Pressure range (Mpa): 0-60Mpa.
Outside dimension: 160mm*100mm*380mm
Tank Volume (L): 1.0L
Maximum testing pressure: 60Mpa
Net weight (kg): 16kg
Main technical parameter of the nozzle tester
Pressure gage range (Mpa.)
Overall dimensions L×W×H (mm)
Capacity of fuel tank (L)
Largest pressure tested (Mpa.)
0 ~ 40
