Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: xinbaodi
  • Model Number: XBD-619S
  • Warranty: 12 Months
  • Product name: XBD-619S diesel fuel injection pump test bench
  • Color: on request
  • Function: test traditional mechanical pump
  • Power supply: 380v/220v or on request
  • Material: steel
  • Power: Electric
  • Certification: ISO & CE
  • Moto power: 7.5kw, 11kw, 15kw, 18.5kw, etc.
  • Keyword: diesel fuel injection pump test bench
  • Weight: 980kgs

Packaging & Delivery

Packaging Details XBD series pump test-bed size and weight:
Size:
Net size: long* width * high = 2150mm * 1050mm * 1600mm
Wood packaging: long* width * high = 2300mm * 1250mm * 1800mm
Weight:
Net Weight: 900KG
Gross weight: 980KG
Customs HS code: 9031200090
Or: 8413110000
Delivery Time 15 days after received prepayment

XBD-619S diesel fuel injection pump test bench





Technical specification:

Name and Model

System

Specification Details

Remarks

XBD-619S Pump Test Bench

Technical Data

1, Host machine power : 5.5KW ,7.5KW,11KW,15KW,18.5KW,22KW

2, The principle axis revolution: 0-4000r/min.

3, 12 cylinders pumps can be tested.

4. Automatically computer control and display by screen.

5. Oil metering counting : 0-1000 times , one gear per 50 times

6. Oil pressure meter 1.5 grade : 0-0.6Mpa, 0-6Mpa, 0-0.16Mpa, 0-1.6Mpa.

7, Big measuring cylinder: 150ml

Small measuring cylinder: 45ml

8, Oil tank volume: ≥ 40L

Oil supply: ≥ 10L/Min

Oil filter precision: 5μ

9, Principle axis revolution fluctuate: ±1r/min

Attached tool box, the service tool and special tools, “T” Type test bench, low  noise and economical

Protection

Under voltage, over pressure, super heating and over loading protection function

Electrical equipment

1. It has built-in electrical box and convert box.

2. Short-circuit protection.

Overall dimension

2300×1160×1750mm L/W/H

Weight

Net weight: 980kg.





Functions for test bench



1.  Check different pumps with proper attachments, and carry out the following test:

2.  Check each cylinder’s oil supply and evenness at different rotation speed

3.  Check pump’s injection time and interval angle of oil supply

4.  Check mechanical governor

5.  Check pressure compensation

6.  Check distributor pump.

7.  Check cold starting device and electromagnetic valve

8.  Check returned oil of distributor pumps (Optional)

9.  Check internal pressure of distributor pump

10.  Check the sealing of injection pump body

11.  Check auto-sucking function of oil transfer pump



Details of test bench



1 The main principal axis revolution, oil metering counting, Oil temperature control, pressure display use digital display

2 The touching type oil proof switch can realize left and right two sides operation .the system us stable and reliable !

The host machine frequency conversion speed regulation . The regulation speed is about 4000 revolution /min

4 The manual speed regulation and rotate speed multi gear setting

5 0-0.25Mpa air supply output , built-in type blast pump

6 It has DC12V and DC24V stable power output

7 The host machine is channel steel structure; the complete structure is compact and steady

8 the shell use static painting, it is beautiful

9 The oil sump tank can realize right and left rotation , and also up and down regulation

10 The test bench has urgent brake switch

11 It adopts advanced frequency conversion governor, with high precision rotate speed

12 The test bench have under voltage, over pressure, super heating and over loading protection function

13 The test bench low noise

14 The test bench has high mechanical efficiency and save energy



Others model test bench

We have more model products for testing traditional mechanical pump.

Such as XBD-619D screen display test bench by

https://xinbaodi.en.alibaba.com/product/225190629-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_XBD_619D.html?spm=a2700.8304367.prewdfa4cf.34.4557ee10VRUXAx

You can also check more information by

https://xinbaodi.en.alibaba.com/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=a2700.8304367.topnav.5.5b9555bfH8uwzt



Certificate

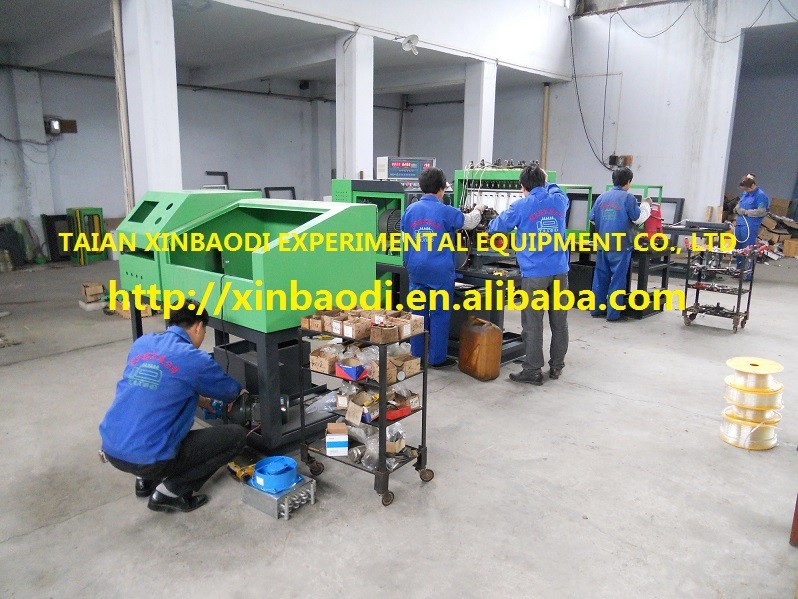

Our workshop



Contact

TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD

Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA

Mob:0086-13562896072

WeChat: 0086-13562896072

WhatsApp: 0086-13562896072

Skype: testbench201010

E-mail: testbenchina * yahoo.com

Website: https://xinbaodi.en.alibaba.com

www.testbenchchina.com
