Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: XinBaoDi
  • Model Number: XBD-619D
  • Power: Electronic
  • Usage: Auto Testing Machine
  • Product name: bosch diesel fuel injection pump test bench
  • Application: Electrics
  • Power supply: 380V, 220V or on request
  • Certificate: CE ISO
  • Warranty: 12 Months
  • Color: Request
  • Function: Test traditional mechanical pump
  • Motor power: 7.5kw, 11kw, 15kw, 18.5kw, etc
  • Keyword: diesel fuel injection pump test bench
  • Weight: 900kgs

Packaging & Delivery

Packaging Details Wooden Case or on request
Delivery Time 15 days

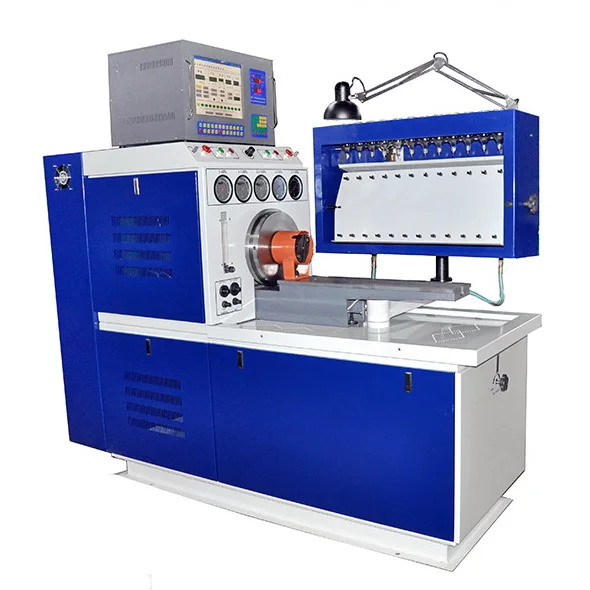

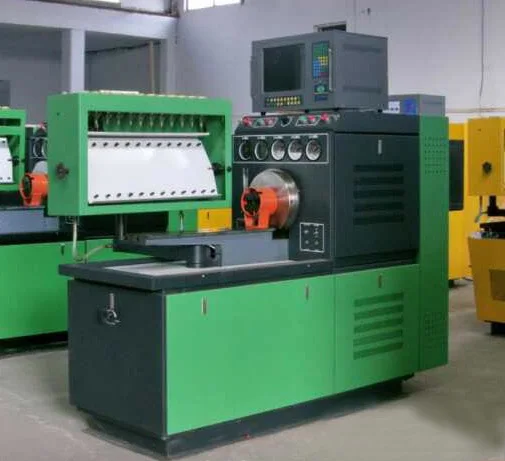

XBD-619D Calibration machine bosch diesel fuel injection pump test bench

XBD serial Fuel Injection Pump Test Bench is the newest production which is designed by the company itself according to the requirements in the field of oil pump and oil nozzles .Main motor drive is equipped with the technique of changing frequency changing frequency changing rotational speed .measuring oil numbers ,the

Fuel temperature, air pressure , Length journey rotation angle and so on are all in the  manifestation way of digit , and the manifestation is clear . The most prominent feature of the test bench is that it has ten-archive rotate speed presetting and rotate speed presetting is fast and has high precision . Such a function saves much time and improves effiency.



Data of XBD-619S Pump test bench



Model

XBD-619D

1

The principle axis rotation speed

0-4000r/min. the two directions are optional

2

test oil injection pump cylinders

12

3

The principle axis rotation speed fluctuate

±1r/min

4

The host machine power

5.5KW ,7.5KW,11KW,15KW,18.5KW,22KW

5

The oil supply drive motor power

1.1KW

6

Principle axis center to center spacing working bench height

125mm

7

The oil metering counting

0-1000 times , one gear per 50 times

8

Rotation speed, counting, toothed bar stroke, in advance angle display

four digital display

9

The pressure, oil temperature display

three digital display

10

The oil temperature automatic control

40℃±2

11

Gas source pressure

0-0.25Mpa

12

The oil tank volume

40L

13

The oil pump oil supply

10L/Min

14

The oil filter precision

15

The glass measuring cylinder volume

Big measuring cylinder: 150ml

Small measuring cylinder: 45ml

16

The oil pressure meter

1.5 grade: 0-0.6Mpa, 0-6Mpa0-0.16Mpa, 0-1.6Mpa

17

The standard injector

ZS12SJI

18

Cooling method

forced wind cooling

19

Test bench overall dimension(mm)

2300×1160×1780

20

Test bench weight

1200Kg.



CHARACTERISTICS



1. The test bench control and display system use industrial control computer and monolithic computer MCS51 double system ,complete independent control, open the window under the operation panel, you can start the digital display function who is the standby control system

2. Frequency control of motor speed. The speed range is 0~ 4000 rpm.

3. Screen display the count, rotation speed, air pressure, fuel temperature, toothed bar stroke(special order) and  advance angle(special order)

4. The manual and automatic adjusting speed, rotate speed multi–gear pre-set

5. 0-0.25Mpa air supply output , built-in air pump

6. DC12V and DC24V power output

7. The host machine is channel steel structure; the complete structure is compact and steady

8. the shell use static painting, it is beautiful

9. The oil sump tank can rotate right or left, and also adjust up or down

10. The test bench has urgent brake switch

11. The test bench has protection function when under voltage, over pressure, over heating and over loading

12. The test bench has very low noise

13. The test bench has high mechanical efficiency and save energy





Company profile

Taian Xinbaodi Experimental Equipment Co., Ltd., located in Taian City Shandong Province P.R. China, is a leading manufacturer specializing in producing and exporting Diesel Fuel Injection System Testing Equipments in China, is available for traditional diesel fuel injection pump test bench, common rail (CR) pumps and injectors test bench, large special oil pump test bench, PT-CUMMINS pump and injectors test stand, In-line electronic controller pumps test system, EUI/EUP test system, Nozzle Tester, diesel tank cleaning machnes, and assemble and disassemble tools of the pumps.



Others products

We have more model products for testing traditional mechanical pump.

Such as XBD-619S screen display test bench by

https://www.alibaba.com/product-detail/XBD-619S-diesel-injection-pump-repairing_1259965087.html?spm=a271v.8028081.0.0.2bb24a7azyVNGq



You can also check more information by

https://xinbaodi.en.alibaba.com/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=a2700.8304367.topnav.5.5b9555bfH8uwzt



Certificate



Package

The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.



Contact

TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD

Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA

Mob:0086-13562896072

WeChat: 0086-13562896072

WhatsApp: 0086-13562896072

Skype: testbench201010

E-mail: testbenchina*yahoo.com

Website: https://xinbaodi.en.alibaba.com

www.testbenchchina.com



FAQ

Q: How many days to produce this test bench?

A: It need 5-20 days to produce the test bench.

Q:How can I pay for it?

A:We support TT payment, West Union, and L/C etc.

Q:How to sign an order?

A:We can sign an order offline or online on Ali.

Q:How long of warranty?

A:12 months
