Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Xinbaodi
  • Model Number: XBD-3000A
  • Power: Electronic
  • Usage: Auto Testing Machine
  • Voltage: 220v/380v
  • Motor Powers: 7.5kw,11kw,15kw,22kw,30kw,etc
  • Item Weight: 1150kg
  • Color: Green, Blue, Yellow
  • Length: 1950mm
  • Width: 750mm
  • Height: 1450mm
  • Certification: ISO 9001
  • External testing: Done
  • Is Customized: Yes

Packaging & Delivery

Packaging Details Fumigation-free wooden case
Delivery Time Within one week after order confirmation

Specifications

1 Specially designed for testing both common rail injectors and pumps
2 High effeciency automatic common rail testing

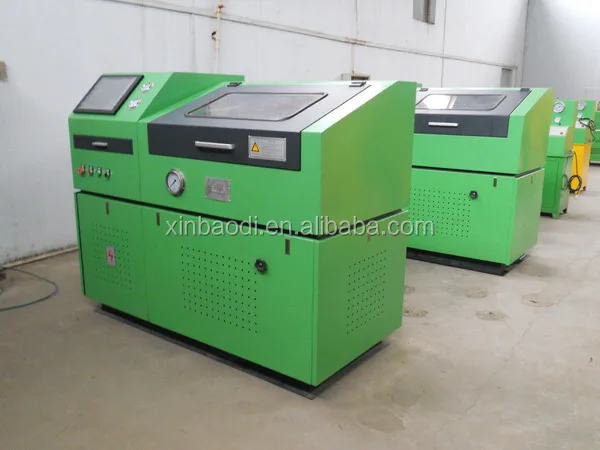

                            The Most Professioanl XBD-3000A Diesel Common Rail Test Bench





XBD-CR3000A High Pressure Fuel Injection Pump and Injector Test Bench is specially designed by us for testing common rail fuel injector and common rail pump, having advanced functions and accurate measurements. It is controlled by industrial computer and has windows operation system. It automatically measures and displays fuel quantity, checks, and stores and revises the tested data and generates database which can be freely updated. It adopts 0-1800bar rail force caused by original BOSCH high pressure common rail fuel injection pump, and automatically regulates the rail pressure. It can test the fuel injector and pump produced by BOSCH SIEMENS, DELPHI, DENSO, having reliable functions, accurate measurements, organic-glass protection door, and easy operation.











Common Rail Test Bench Features:



1, Timely controlled by industrial computer, windows operating system



2, Fuel quantity measured by sensor and displayed on 19 inch LCD monitor.



3, Database can be checked and stored.



4, Breakdown can be remote diagnosed.



5, Adopt 0-1800bar rail force caused by original BOSCH high pressure common rail fuel injection pump.



6, Compulsory refrigerated system control the fuel temperature.



7, Timely measure the rail force, and have protection for high pressure.



8, Fuel injector pulse width of drive signal and frequency can be regulated.



9, Can freely set times and duration of injections of the fuel injector.



10, Short- circle protection



11, Accurate measurement, simple operation, energy saving and low noise.











Common rail test bench function:



I Test common rail fuel injector



1, Test Brands: BOSCH,DENSO,DELPHI,SIEMENS;



2, Test 1-6 branches common rail injector



3, Test estimated injection of common rail fuel injector.



4, Test maximum fuel quantity



5, Test launching fuel quantity



6, Test returned fuel quantity







II Test common rail fuel pump



1, Test Brands: BOSCH,DENSO,DELPHI,SIEMENS;



2, Test leak tightness of high pressure common rail diesel fuel injector.



3, Test inner pressure of common rail pump



4, Test scale solenoid valve of common rail pump



5, Test function of fuel output pump



6, Timely test rail force



7, Test fuel flow of common rail pump



8, Database can be checked and stored.









Taian Xinbaodi Experimental Equipement Co.,Ltd, is the leading manufacturer specialized in producing and exporting Diesel Fuel Injection System testing equipments in China. is available for the following products.









1)Traditional diesel fuel injection pump



2)CR(Common Rail pump Tester)



3)CRI(Commom Rail Injectors Tester)



4)Injectors Test stand



5)In-line electronic controller pumps



6)EUI/EUP test system



7)Nozzle Tester



8)PT-CUMMIN pump



9)EDC(Electronic Diesel Controller)



10)Many spares parts of pump
