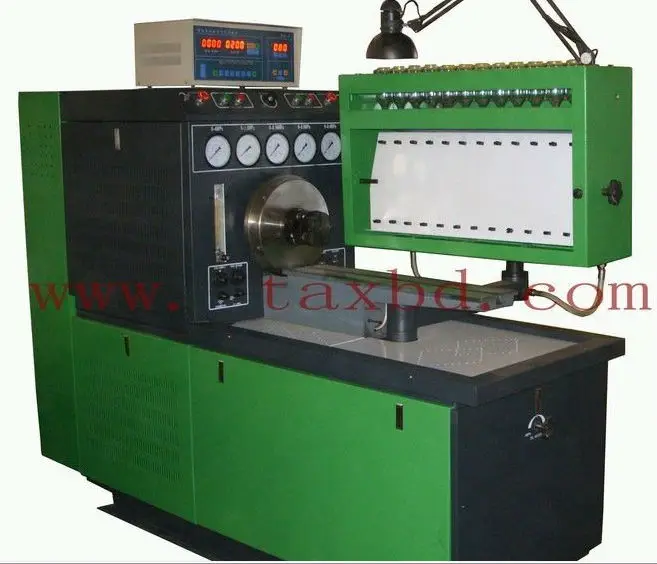

XBD-619S diesel fuel injection pump test bench for truck

FOB Reference Price:Get Latest Price
US $2,800-8,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XBD
Model Number:
XBD-619S
Power:
Electronic
Usage:
Auto Testing Machine
Color:
request
Product name:
XBD-619S bosch diesel fuel injection pump test bench for truck
Certificate:
CE ISO
Power supply:
380V
Warranty:
1 Year
Function:
Test diesel pump
Weight:
900kg
MOQ:
1 Set
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
fumigation - free wooden case
Port
Qingdao and as your requirements
Lead Time :
(1-5) days and have all kinds of stock

XBD-619S bosch diesel fuel injection pump test bench for truck











CHARACTERISTICS

Digital displayed principal axis revolution, oil metering counting, temperature control, advanced angle and oil pressure

Touchable oil-proof switch

Same operation board on left and right sides of work bench

Change rotation speed through host frequency conversion

Multi –gear rotation speed presetting

Right/left, and up/down regulate oil sump tank

Urgent brake switch

Overvoltage, under voltage, overheating and overloading protection

Channel steel structure, compact and steady

Static painted shell

Low noise, high efficiency and energy saving

Attached tool box

Built-in inflator pump

FUNCTIONS

Check different pumps with proper attachments, and carry out the following test:

  Check each cylinder’s oil supply and evenness at different rotation speed

  Check pump’s injection time and interval angle of oil supply

  Check mechanical governor

  Check pressure compensation

  Check distributor pump.

  Check cold starting device and electromagnetic valve

  Check returned oil of distributor pumps (Optional)

  Check internal pressure of distributor pump

  Check the sealing of injection pump body

  Check auto-sucking function of oil transfer pump

PARAMETERS

3-Phase Power Supply

380V/50HZ or 220V/60HZ

Output Power

7.5kw/11kw/15kw/18.5kw/22kw

Optional

DC. Supply

12/24V

Test Cylinders

12pcs

Adjustable Rotation Speed Range

0-4000RPM, 2 directions

Oil Metering Counting

0-1000 times , 1gear per 50 times

Graduate Glass

45cc, 150cc

Volume of Oil Tank

≥ 40L

Temperature Stabilization

40±2 °C

Check Oil Filtering Unit

5u

Oil Pressure Meter 1.5 grades

0-0.6Mpa,0-6Mpa,0-0.16Mpa,0-1.6Mpa

Gas Source Pressure

0-0.25Mpa

Pump Oil Supply

≥ 10L/Min

Center Height

125MM

Overall Dimension

2300×1160×1780MM

Weight

1150KG







Contact

TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD

Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA

Mob:0086-13562896072

WeChat: 0086-13562896072

WhatsApp: 0086-13562896072

Skype: testbench201010

E-mail: testbenchina*yahoo.com

Website: https://xinbaodi.en.alibaba.com

www.testbenchchina.com





FAQ

Q: How many days to produce this test bench?

A: It need 5-20 days to produce the test bench.

Q:How can I pay for it?

A:We support TT payment, West Union, and L/C etc.

Q:How to sign an order?

A:We can sign an order offline or online on Ali.

Q:How long of warranty?

A:12 months
