Quick Details

  • Type: Engine Analyzer
  • Voltage: 220/380v, 220v/380v
  • Power: 5.5/7.5/11/15/18.5/22, 5.5/7.5/11/15/18.5/22KW
  • Certification: ISO9001(ISO9001), ISO9001(ISO9001)
  • Applicable Models: BOSCH/DELPHI/DENSO/SIEMENS(on request)
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: XBD
  • Model Number: CRIA200
  • Warranty: 12 Months, 1year
  • External Testing: Done
  • Is customized: Yes
  • Item Length: 750mm
  • Item Width: 650mm
  • Item height: 500mm
  • Item weight: 80KG

Packaging & Delivery

Packaging Details Packaging:export wood carton
Package Size:length 850mm* width 600mm*height 665mm
Quatity:one container can load 6 sets.
Delivery Time 2 weeks after order confirmation

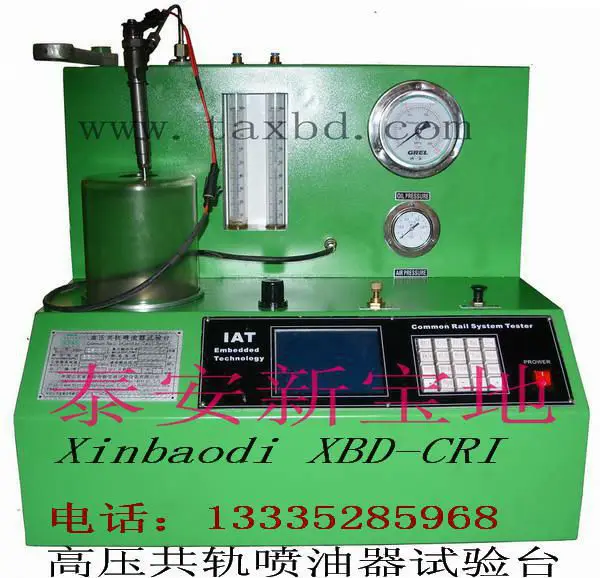

Common rail injector tester XBD-CRIA200



Taian Xinbaodi Experimental Equipement Co.,Ltd, is the leading manufacturer specializing in producing and exporting Diesel Fuel Injection System testing equipments in China. is available for the following products.



1)Traditional diesel fuel injection pump



2)CR(Common Rail pump Tester)



3)CRI(Commom Rail Injectors Tester)



4)Injectors Test stand



5)In-line electronic controller pumps



6)EUI/EUP test system



7)Nozzle Tester



8)PT-CUMMIN pump



9)EDC(Electronic Diesel Controller)



10)Many spares parts of pumps





.CRIA200 can be used to test the following pumps: BOSCH, DENSO, DELPHI, SIEMENS and the last of SIEMENS is available on request.





.Technical parameters





Control range

Control accuracy

Injection open pressure

24v/80v/150v

Stage regulator

Injection open frequency

0-1000HZ

1HZ

Injection open hold time

0-65535us

1us

Delivery counts

0-1000

1 times

Fuel pressure control

0-200MPA

1MPA

Pump Model

CP1/CP2/CP3/HP0

Control way

PID

Power

220V

Work Temperature

0-40°C

Relative Humidity

20~90%RH



.Functions

1 Checking of the solenoid valve of injectors.
2 Measurement of the delivery and overflow of CRI.
3 Watching of CRI injector's spray.
4 Checking of the sealing of CRI.
5 Checking of the opening pressure of injectors.
6 Checking of the sealing of injectors.
7 Watching of the injector's spray.
1 Feeding pressure : 0-180Mpa.
2 Pressure gauge : Feeding  pressure gauge : 0-250Mpa
                   Air gauge :0-1.6Mpa.
3 Graduate :90ml/2 piece.
4 Fuel tank :2.5L.
5 Air in: 0.8Mpa ,  36L/Min.
6 Electrical power in: AC220V/50(60)Hz.

.The color you want to has many choices







Company profile

Taian Xinbaodi Experimental Equipment Co., Ltd., located in Taian City Shandong Province P.R. China, is a leading manufacturer specializing in producing and exporting Diesel Fuel Injection System Testing Equipments in China, is available for traditional diesel fuel injection pump test bench, common rail (CR) pumps and injectors test bench, large special oil pump test bench, PT-CUMMINS pump and injectors test stand, In-line electronic controller pumps test system, EUI/EUP test system, Nozzle Tester, diesel tank cleaning machnes, and assemble and disassemble tools of the pumps.





Other products

We have more model products for testing traditional mechanical pump.

Such as XBD-CR100 common rail system test bench by

https://www.alibaba.com/product-detail/High-Quality-Diesel-Powered-Common-Rail_1476062888.html?spm=a2747.manage.list.520.7ecb3004Spx6k8



You can also check more information by

https://xinbaodi.en.alibaba.com/productgrouplist-209578007/Diesel_Fuel_Injection_Pump_Test_Bench_Series.html?spm=a2700.8304367.topnav.5.5b9555bfH8uwzt







 Package

The package is wooden case or plywood case, if you need, we can also pack the products according to your demands.

Contact

TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD

Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA

Mob:0086-13562896072

WeChat: 0086-13562896072

WhatsApp: 0086-13562896072

Skype: testbench201010

E-mail: testbenchina*yahoo.com

Website: https://xinbaodi.en.alibaba.com

www.testbenchchina.com





FAQ

Q: How many days to produce this test bench?

A: It need 5-20 days to produce the test bench.

Q:How can I pay for it?

A:We support TT payment, West Union, and L/C etc.

Q:How to sign an order?

A:We can sign an order offline or online on Ali.

Q:How long of warranty?

A:12 months

Q:Do you have some repairing tools?

A:Yes, we have many kinds of repairing tools for common rail injector and pump.
